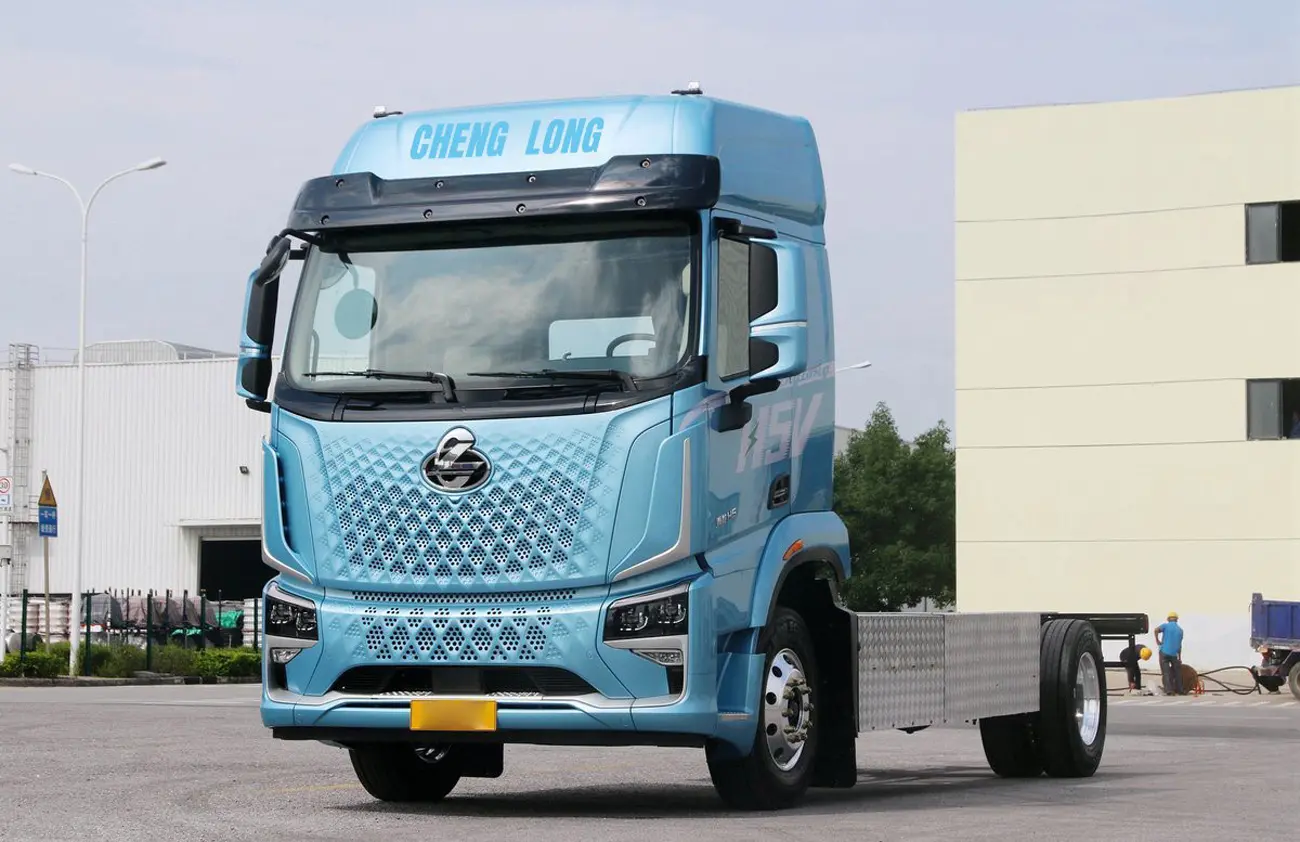

China 4×2 H5V Electric Tractor Truck Manufacturers, Factories

Chenglong H5V is equipped with Yuchai YCS06270-60 engine, which is an inline six-cylinder engine with 6.23L displacement, complying with the National VI emission standard, with a maximum output power of 199kW (270hp) and peak torque of 1,050N-m. Not only that, the six-cylinder Yuchai engine is also equipped with modular design, which makes it lighter in dead weight, and there is a 60,000km oil change cycle, which makes the trucks more economical for truck owners. The six-cylinder Yuchai engine is equipped with modular design.

Send Inquiry

Product Description

Efficient Power System

The transmission system is matched with an 8-speed Faster gearbox, model 8JS105TA, which is designed with overdrive gears, with a head gear of 8.08 speed ratio and a top gear of 0.72 speed ratio.

As for the chassis, the 9T rear axle is adopted for this Chenglong H5V, with a speed ratio of 4.11. The suspension is designed with progressive leaf springs, in the form of front 3 and rear 3+3. The tyres are 275/80 R22.5 Chaoyang low rolling resistance vacuum tyres, and the rims are made of aluminium alloy.

Key Advantages

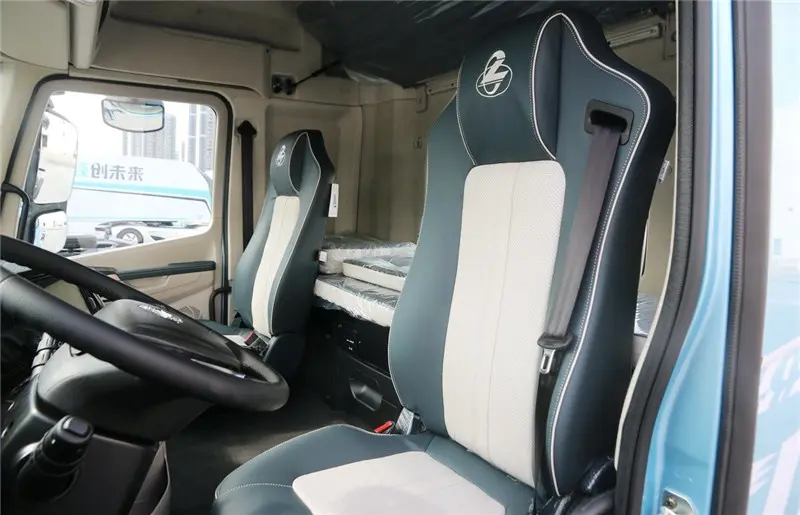

Large Space

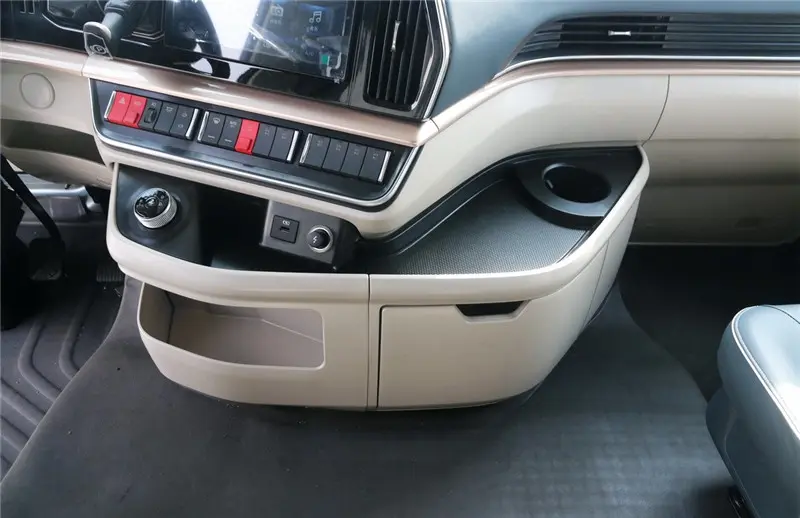

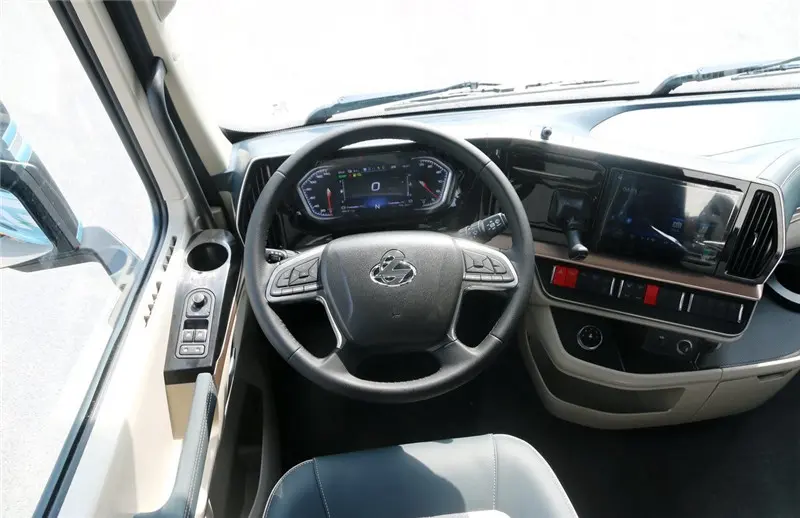

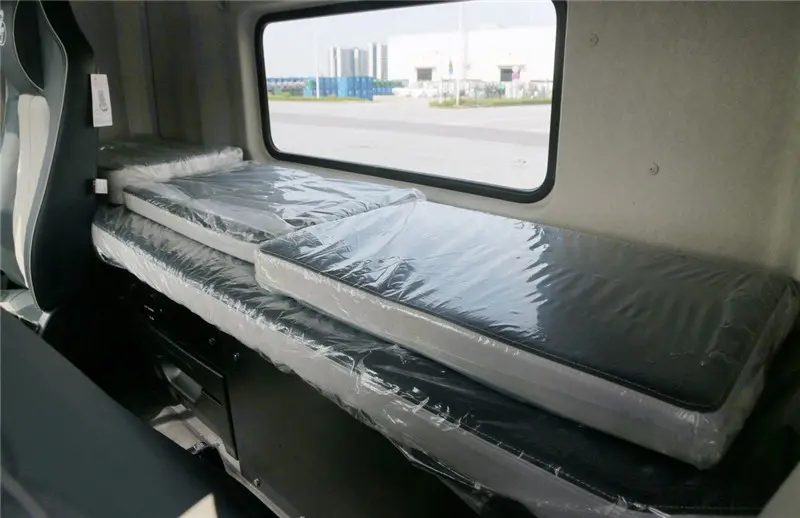

There are four storage in the cab, such as left and right top covers, instrument panel and storage box under sleeper, space is in place at step. Car configuration, integral instrument panel + remote control central look + electric window + mobile phone interconnection/reversing image, easy operation and effective improvement of driving comfort.

Safety

Reliable performance for heavy-duty transportation. Safe and efficient, ideal for commercial use. Its advanced features ensure smooth and secure operation for long-distance hauling.

Efficient

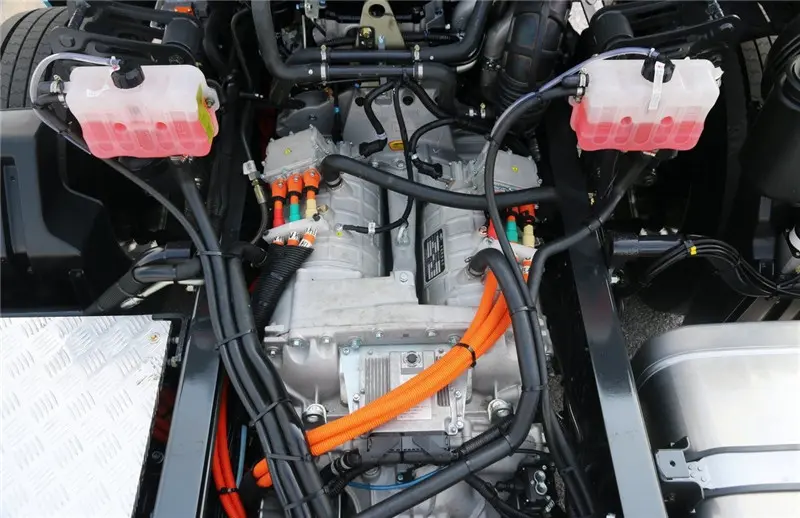

Modular and lightweight design is adopted to ensure that the load capacity can be satisfied, greatly reducing the weight of the chassis and the whole vehicle. In low-speed road conditions, the motor can independently provide kinetic energy, avoiding the inefficient working range of diesel engines.

Technical Parameters

Drive Type	Wheel Base	Engine	Battery Capacity	Fuel Type	Tyres
6X4	3800+1350	Yuchai YCK05230-61	15.6kWh	Hybrid	275/80R22.5

More Details

Frequently Asked Questions

Q1: What transmission system is equipped on the H5V model?

The vehicle uses an 8-speed Faster gearbox (model 8JS105TA) with overdrive gears, featuring a top gear speed ratio of 0.72.

Q2: What is the load capacity and chassis configuration?

It features a 9T rear axle with a 4.11 ratio and a progressive leaf spring suspension (front 3, rear 3+3) to ensure high load capacity and stability.

Q3: How does the hybrid system improve fuel economy?

In low-speed conditions, the motor independently provides kinetic energy, which avoids the inefficient range of the diesel engine, leading to better fuel efficiency.

Q4: Does the cab offer modern comfort features?

Yes, the cab includes an integral instrument panel, remote central locking, electric windows, and mobile phone interconnection with a reversing image system.

Q5: What are the storage options within the vehicle?

There are four primary storage areas: left and right top covers, the instrument panel, and a dedicated storage box located under the sleeper.

Q6: What type of tires are used for this tractor truck?

The vehicle is equipped with 275/80 R22.5 Chaoyang low rolling resistance vacuum tires with lightweight aluminium alloy rims.
