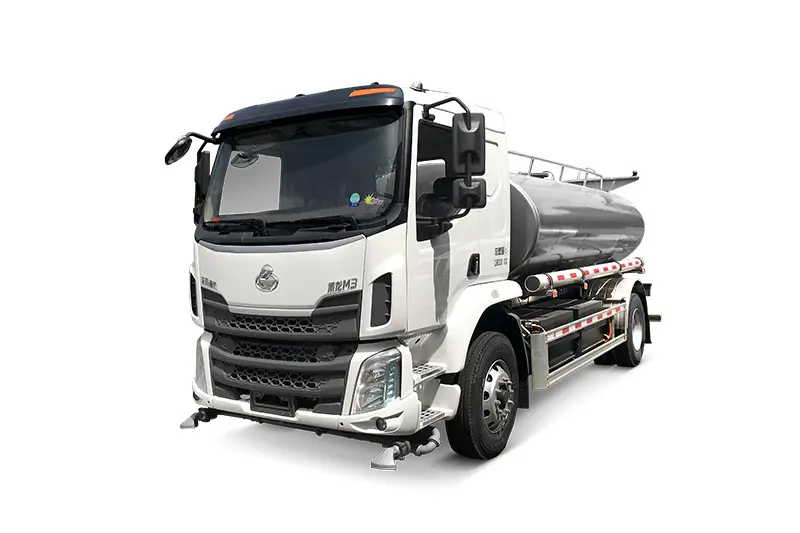

Wholesale M3 Sanitation Truck Supplier, Factory
Our model sanitation truck is designed for customization, allowing you to tailor it to your specific needs. With a focus on environmental protection, this truck is equipped with advanced features to minimize emissions and reduce its carbon footprint. The Chenglong brand is synonymous with quality and reliability, ensuring that this sanitation truck delivers exceptional performance and durability. Whether you're a municipality, waste management company, or industrial facility, this sanitation truck offers a versatile and practical solution for your waste disposal needs.
The inner space of the small dump truck cab is designed with ample room for comfort and convenience. With an inner height of 1500mm and a seat height of 1000mm, drivers can enjoy a spacious environment conducive to long hours on the road. Additionally, the generous legroom of 250mm ensures comfort during extended periods of driving. For added convenience, the sleeper dimension of 1850*560mm provides a cozy resting area for drivers during breaks or overnight stays.

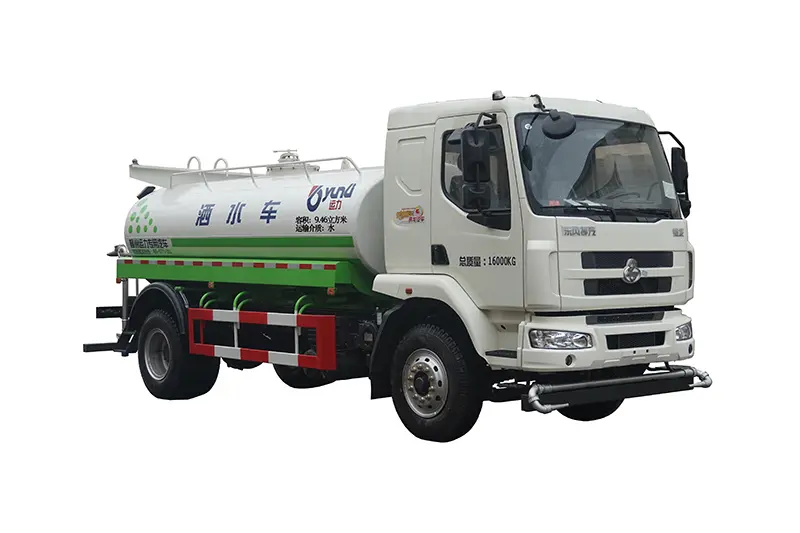

The truck also serves as a valuable tool for urban greening initiatives. Designed to efficiently water and maintain green spaces within urban areas, it plays a vital role in enhancing the aesthetic appeal and environmental quality of cities. With its specialized features and capabilities, it contributes to the preservation and beautification of urban landscapes.
Superior Fuel Efficiency
The YC4D engine stands out for its exceptional qualities, including low emission levels, minimal oil consumption, and reduced noise output. This engine is designed with a focus on environmental sustainability, emitting fewer pollutants into the atmosphere while operating efficiently. Its low oil consumption not only contributes to cost savings but also reduces the need for frequent maintenance, enhancing overall reliability.
Despite its impressive performance and environmental features, the engine remains competitively priced, making it an economical choice for various applications. Furthermore, it offers excellent potential for emission upgrades, ensuring compliance with evolving regulations and standards while maintaining optimal performance levels.
Clean and Silent Operation
The integrated structure floor mat is equipped with a protective strip, which has strong insulation, is easy to clean, and has good noise reduction performance.
Technical Parameters Overview
Drive Type
Wheel Base
Engine
Transmission
Rear/Speed Ratio
Frame
Tyres
4X2
4500mm
Yuchai YCS04200-68
FAST 8JS75E-C
4.875
231(6)mm
10.00R20 18PR
Detailed Specifications (4 × 2 M3 Right Rudder Truck)
Chassis Dimensions
Dimensions(L*W*H)
7930mm*2474mm*2959mm
Wheel base
4500mm
Front/Rear wheel track
2020mm/1860mm
Front/Rear overhang
1445mm/1985mm
Vehicle Weights
G.V.W
15000kg
Curb weight
5000kg (CHASSIS ONLY)
Engine Performance
Model Type
YCS06245-50
Emission level
Euro 5
Maximum power
180Kw / 2500rpm
Maximum torque
850N.m / 1200-1700rpm
Number of cylinders
6 cylinder 4 stroke, common rail, direct injection, turbo intercooler
Displacement
6.23L
Gear Box & Axle
Type
6J80T (6 forward, 1 reverse)
Front Axle
Rigid stub axle with double T-cross section (5t)
Rear Axle
Press welding shell, Single-stage reduction (10t), ratio 4.875
Fuel & Operational Data
Fuel Tank
250L Aluminum tank
Max Driving Speed
109km/h
Max Gradeability
≥25%
Fuel Consumption
17L/100Km (at 20t)
Frequently Asked Questions
What are the main features of the engine used in this truck?
The truck uses Yuchai series engines (like the YC4D and YCS06), known for low emission levels, minimal oil consumption, and reduced noise. They are designed for Euro 5 standards, offering high reliability and cost-efficiency.
How is the comfort level for long-distance driving?
The M3 cab features an inner height of 1500mm and 250mm of legroom. It also includes a 1850*560mm sleeper area, mechanical shock driver seats, and air conditioning to ensure comfort during long hauls.
What is the fuel tank capacity and material?
The vehicle is equipped with a 250L large-capacity aluminum fuel tank, which is lightweight and resistant to corrosion.
What safety and control systems are included?
The truck is equipped with a full air brake system, a split pneumatic circuit, a parking spring brake on rear axles, and an ABS system from WABCO for superior braking safety.
What is the maximum speed and load capacity?
The truck has a Gross Vehicle Weight (G.V.W) of 15,000kg and can reach a maximum driving speed of 109km/h, with a gradeability of 25% or higher.
Is the cab easy to maintain and clean?
Yes, the interior includes an integrated structure floor mat with a protective strip that is highly durable, easy to clean, and provides excellent noise insulation.
