Dongfeng
Dongfeng
| Drive Type | Wheel Base | Engine | Cargo Dimension | Transmission | Tyres |
|---|---|---|---|---|---|
| 6X4 | 3800+1350 | YC6MK385-50 (385HP) | 5600 × 2300 × 1500 | 12JSD180T | 12.00R20-18PR |
| Vehicle Performance Specifications | |
| Model Options | LZ3252H7DC2 / LZ3252H7DC3 |
| G.V.W | 25000kg |
| Maximum Power | 285Kw / 1900rpm |
| Maximum Torque | 1800N.m / 1100-1500rpm |
| Displacement | 10.338L |
| Clutch | φ430mm Hydraulic control with air booster |
| Maximum Speed | 90km/h |
| Fuel Tank | 350L Aluminum |
| Gradeability | ≥56% |
| Fuel Consumption | 38L/100Km |

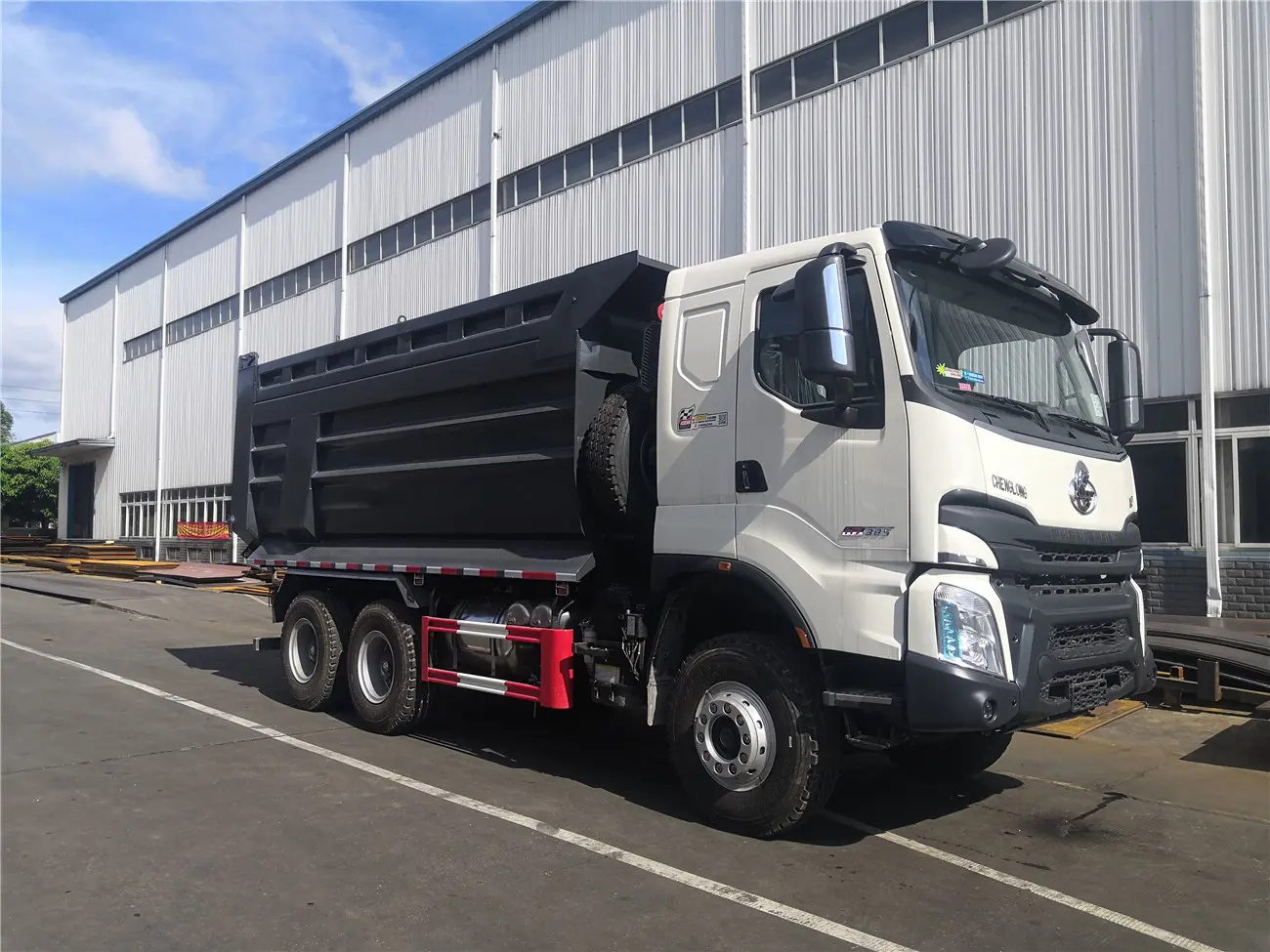

This vehicle is specifically designed for versatile operations on National roads, sand roads, and dirt roads, particularly for transportation distances within 150 kilometers.
The cab features a keel frame structure and an integral door equipped with a double-layer anti-collision beam and an all-steel bumper to provide maximum protection for the driver and passengers.

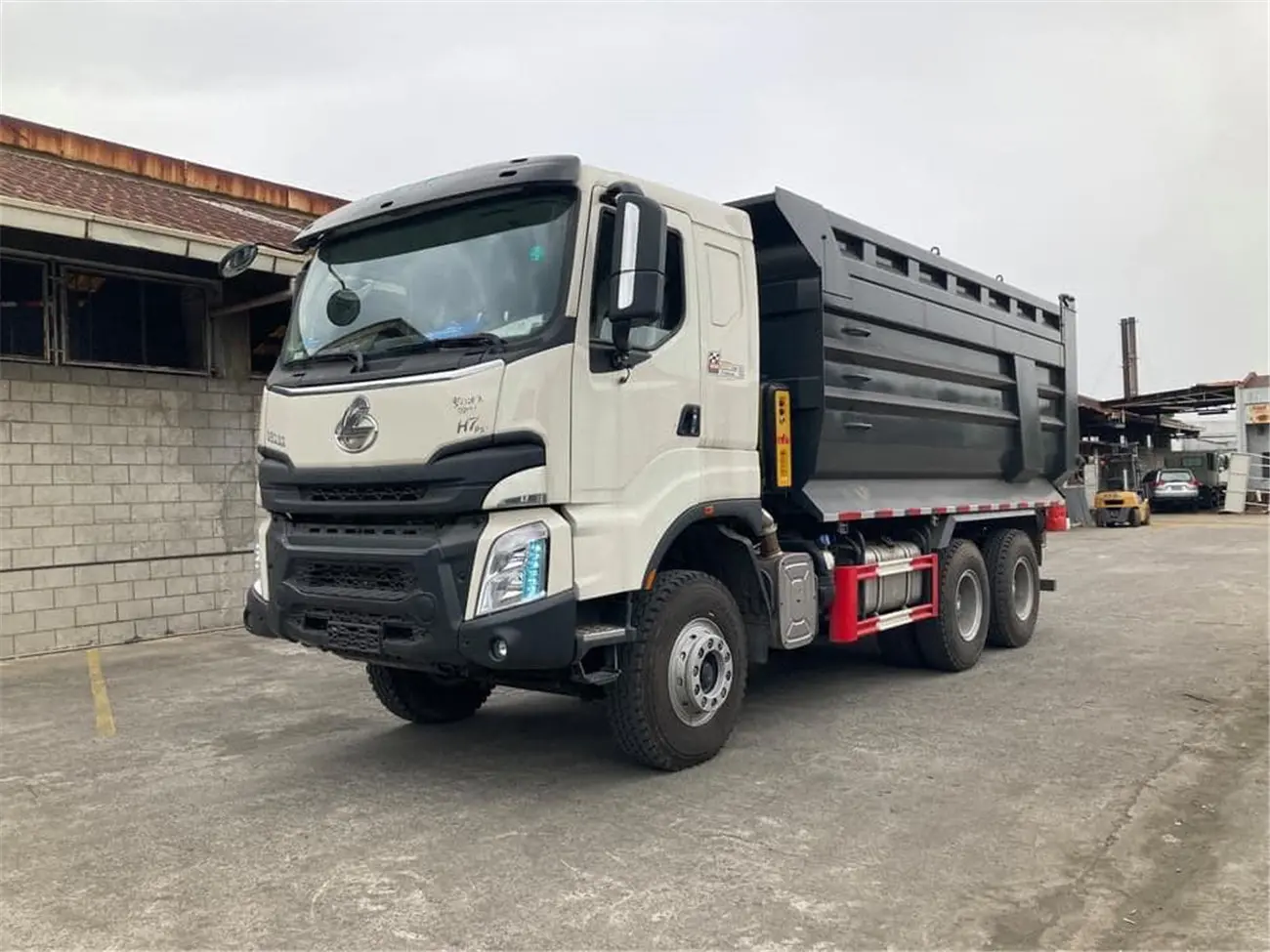

The vehicle utilizes high-quality WABCO brand valves and ABS systems, ensuring stable air pressure, zero air leakage, and reliable braking performance.

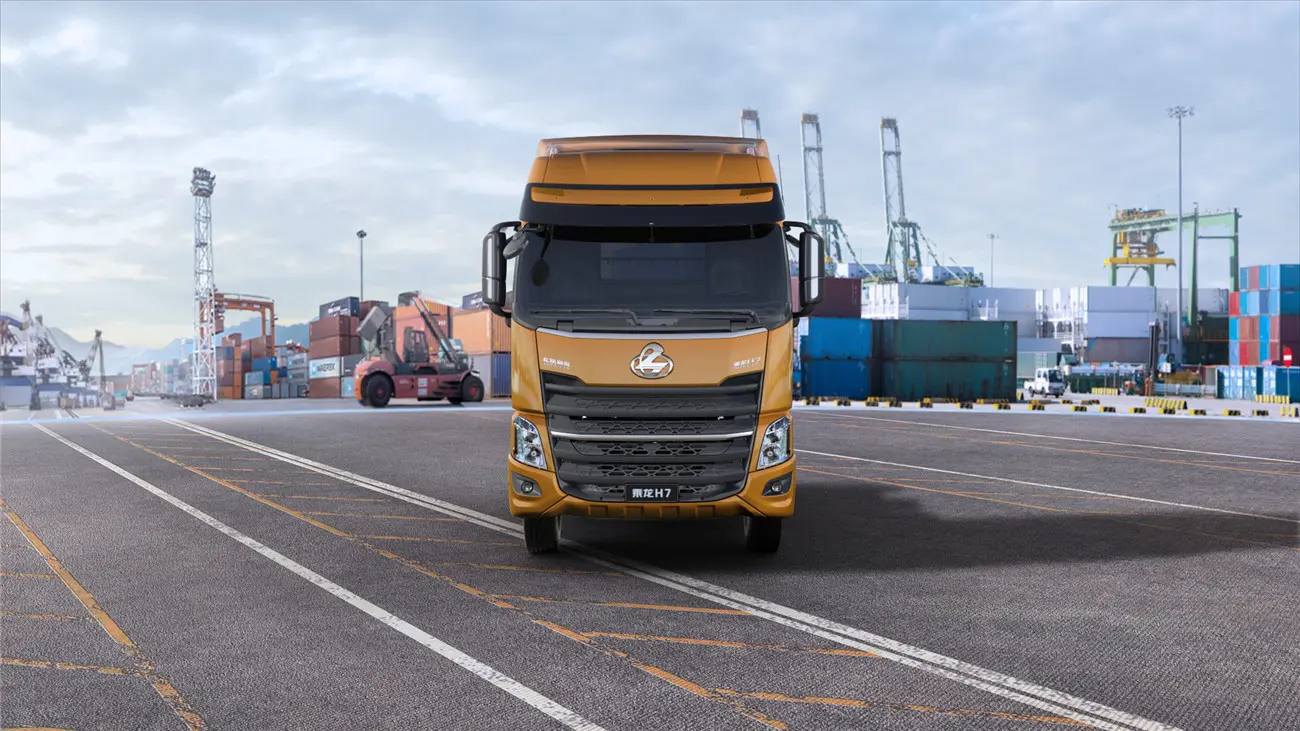

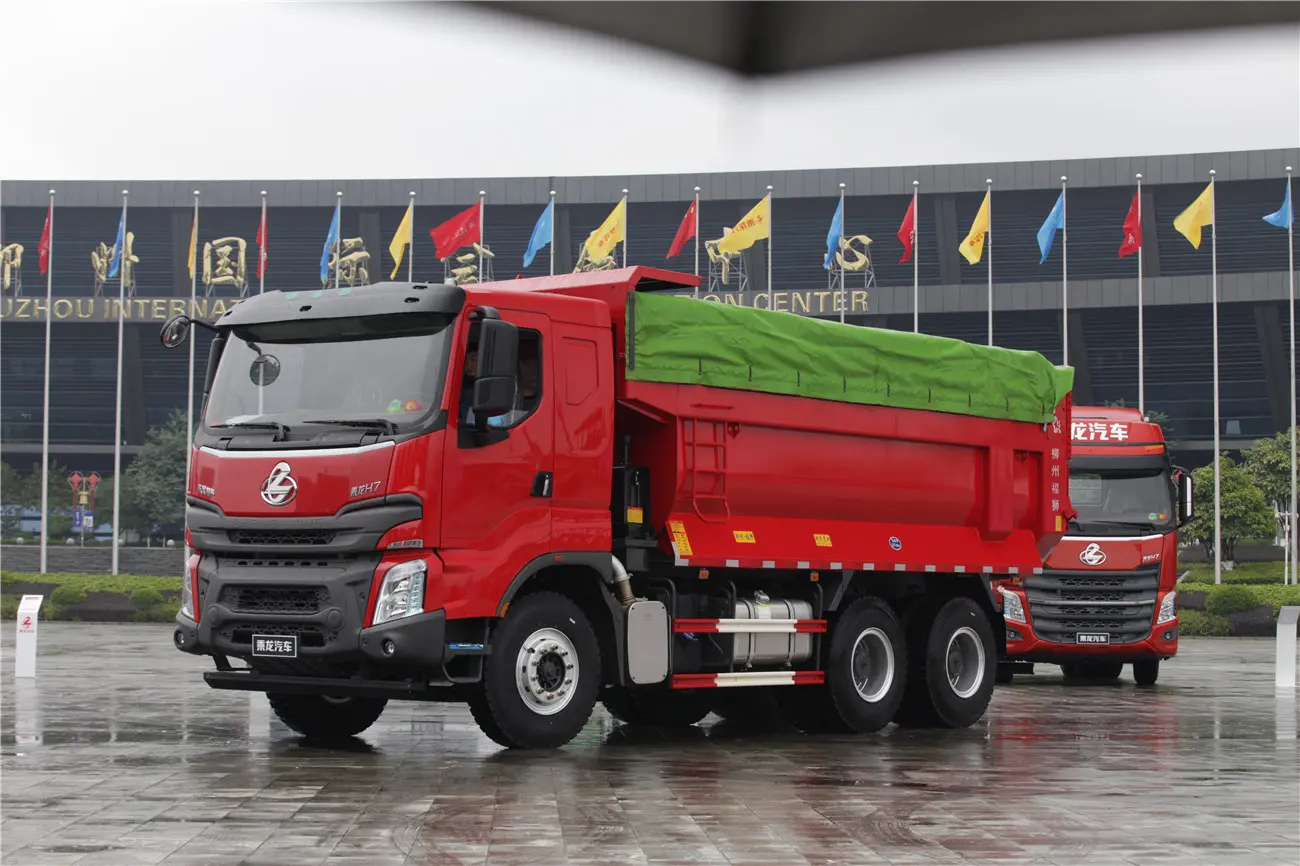

Yes, the chassis is stamped by a 6300T stamping machine and features a 16T hub-reduction casting steel rear axle, providing superior load-carrying capacity and torsion resistance.

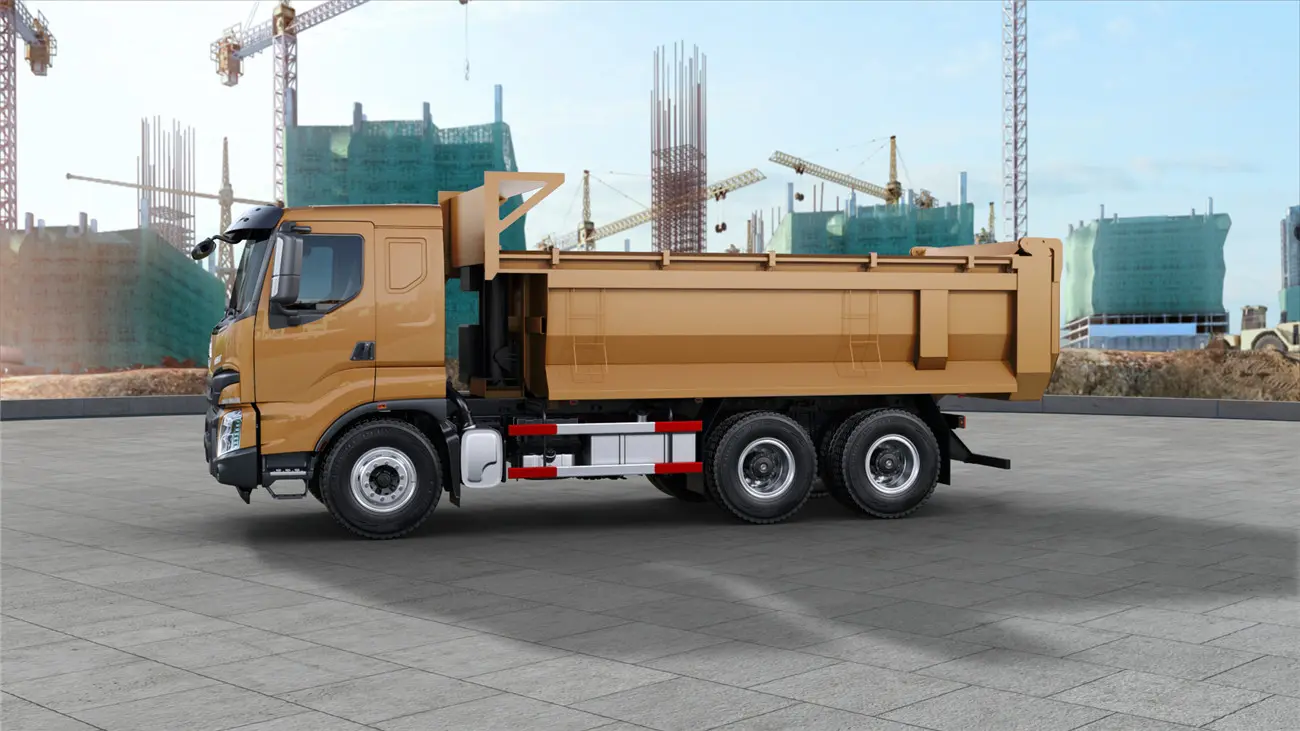

Efficiency is achieved through the modular chassis design and the 12JSD series transmission, which is optimized for engineering transportation to provide a balance of power and fuel economy.
The primary differences lie in the dimensions and wheelbase. The H7DC2 has a 4050+1350 wheelbase with a length of 9210mm, while the H7DC3 has a longer 4500+1350 wheelbase and a total length of 9510mm.
