China 6X4 H5 Dump Truck Manufacturers, Factory

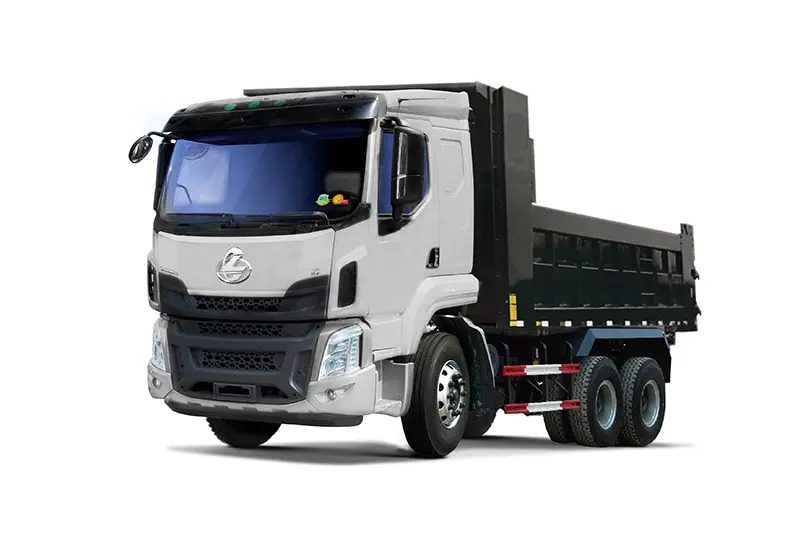

The Chenglong H5 6X4 dump truck is a truck designed specifically for heavy-duty material transportation. It features a powerful engine and efficient transmission system, capable of handling various complex road conditions and transportation demands. The truck has a large-capacity dump body, suitable for transporting bulk materials such as ores and construction materials. Its cabin is designed for comfort and equipped with advanced driver assistance systems, allowing drivers to remain comfortable and alert during long drives. Additionally, the truck prioritizes safety, equipped with advanced braking systems and protective structures to ensure the safety of both the driver and the cargo. Overall, the Chenglong H5 dump truck is a powerful, safe, and reliable solution for heavy-duty material transportation needs.

Send Inquiry

Product Description

Product Upgrades & Performance

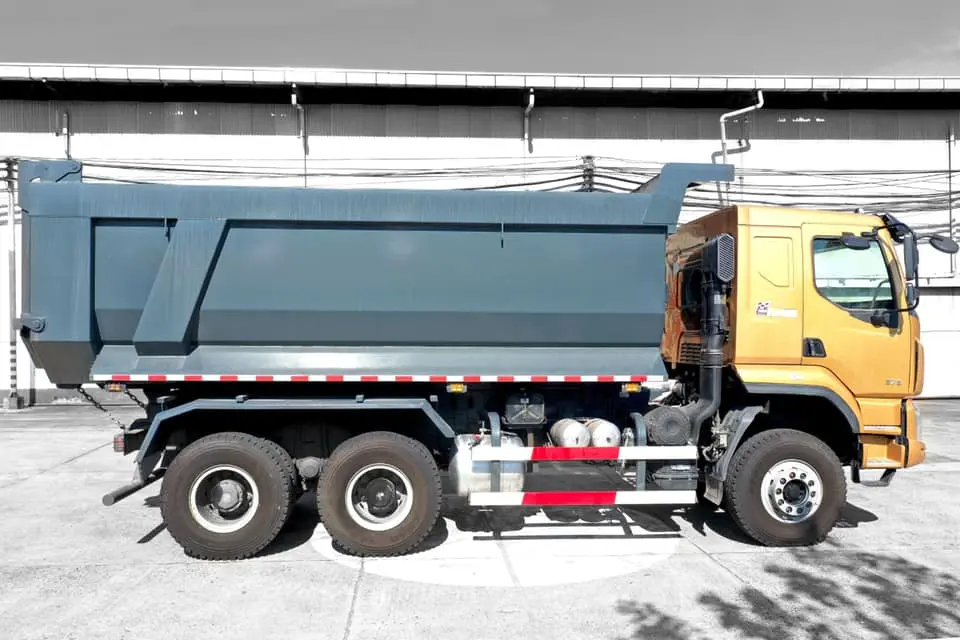

Safety Upgrade

The passive and active safety of the vehicle is upgraded comprehensively!

Passive safety: Features a keel frame cab to achieve armoured protection. The chassis centre of gravity is lowered by 20mm for stronger stability. New balanced suspension technology with double jockey U-bolts and lower thrust rod improves driving stability.

Active safety: Super wide field of vision with 360° blind zone monitoring. Reversing, parking, and overtaking are clearer and safer.

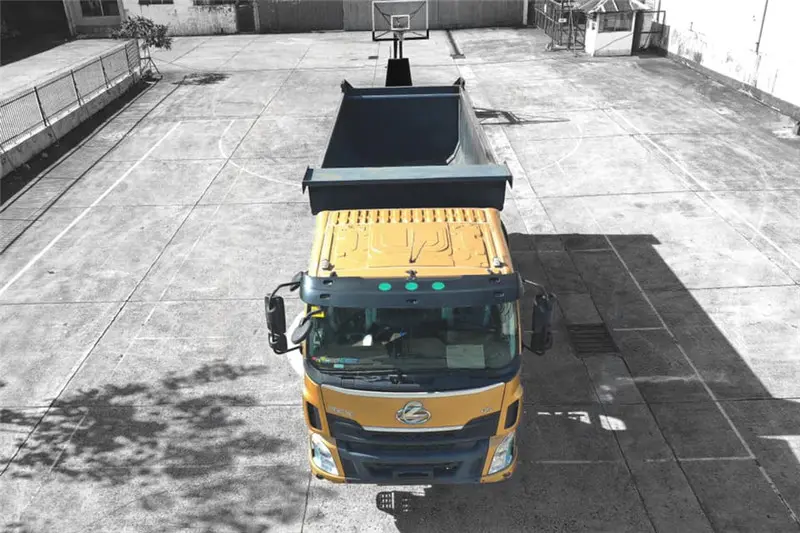

Reliable Upgrade

Golden power matching: Weichai/Yuchai power, FAST transmission, and Mercedes-Benz rear axle are preferred as the golden power matching. High transmission efficiency ensures the whole vehicle is mature and reliable for heavy-duty operations.

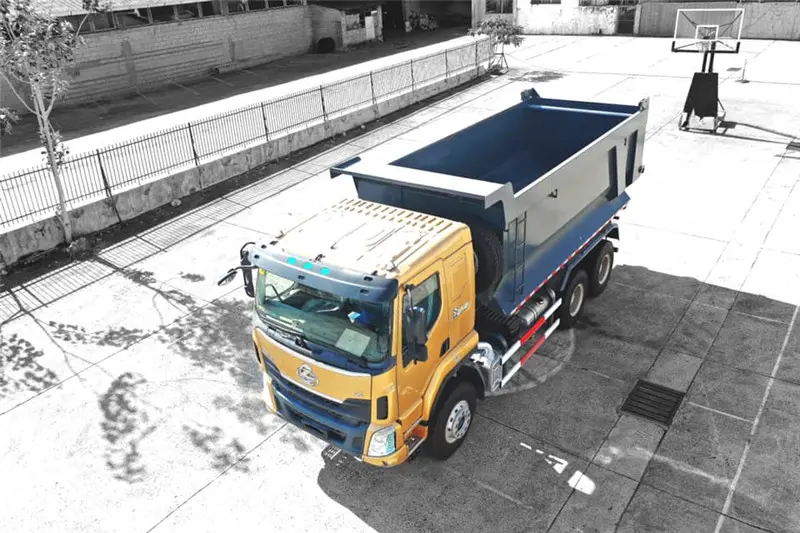

Fuel-saving Upgrade

Optimised power matching provides high torque at low speeds and fast acceleration.

Efficiency: Drag-reducing design reduces wind resistance by 9%, lowering fuel consumption by 4%. Lightweight materials reduce deadweight by over 300kg, allowing for more cargo capacity and better fuel economy.

High Efficiency Upgrade

Equipped with Yuchai/Weichai high-horsepower engines for strong climbing ability and quick response. The vehicle is designed to be light and manoeuvrable, ensuring daily maintenance is convenient and cost-effective.

Comfort Upgrade

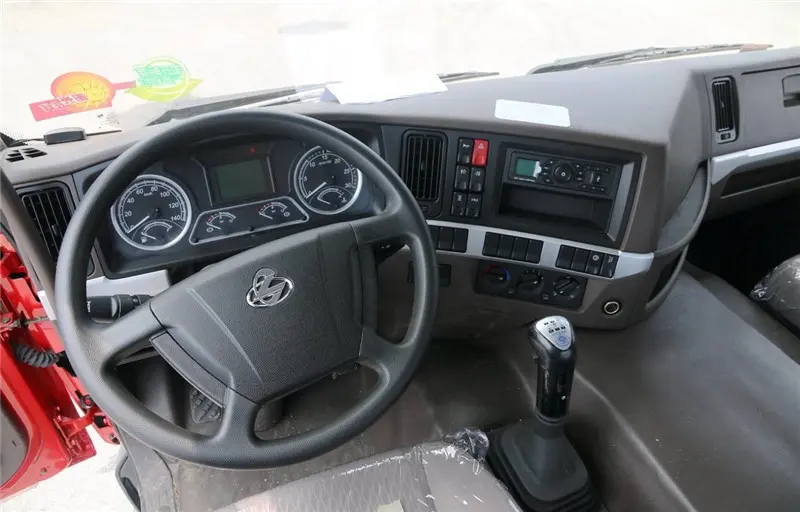

Features a surrounded dashboard, new interior, and multi-functional rest area.

Quietness: The suspension cab and integral engine cushion reduce vibration. Interior noise is as low as 70dB due to advanced damping boards and surrounded wings.

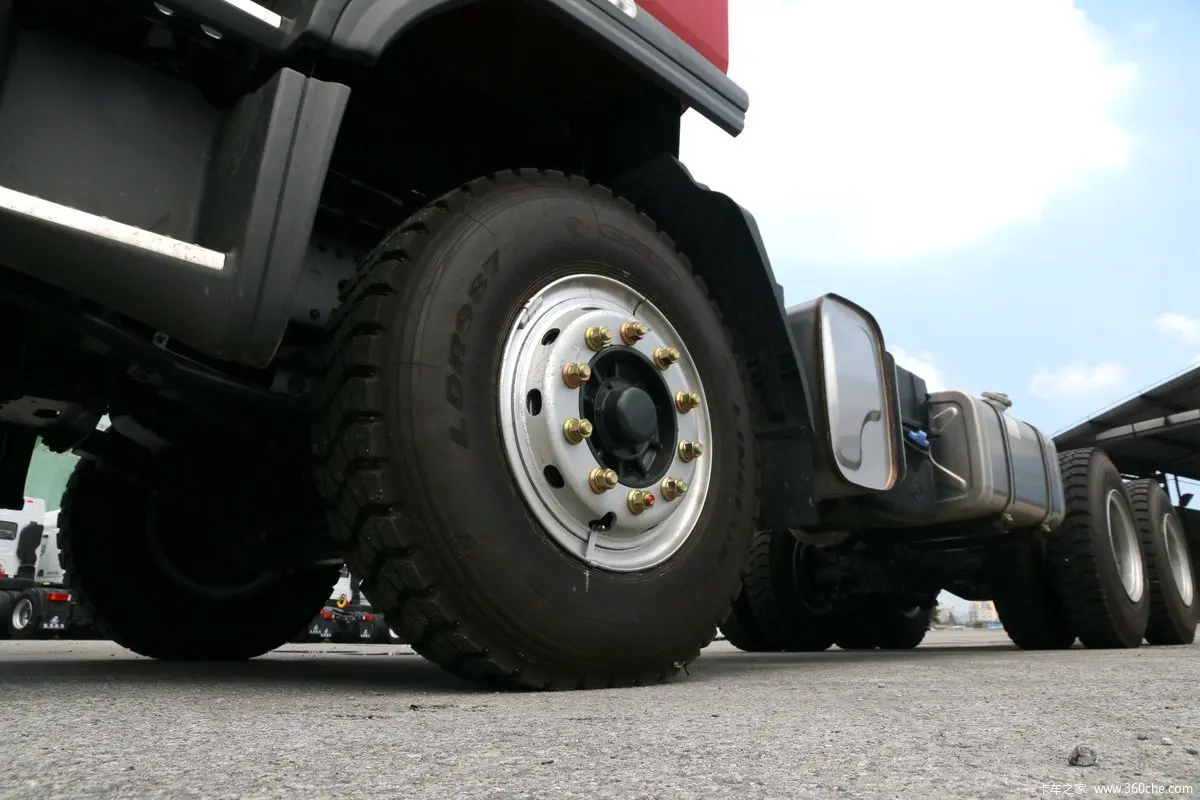

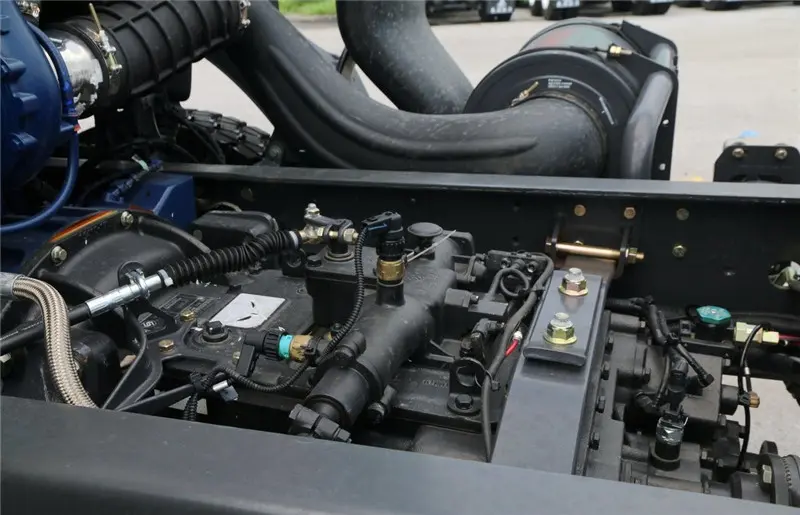

More Details

Technical Parameters

Cargo Dimension	Transmission	Clutch	Rear/Speed Ratio	Frame	Tyres	Other Specs
5600 × 2300 × 1500	FAST 12JSD180T	Φ430	5.262	282(8+4)	11.00R20 18PR	Option: 12JSD180TA + 5.262/5.921/4.769 speed ratios, rear axle stabiliser bar, electro-hydraulic tipping, automatic air conditioning.

Frequently Asked Questions

Q1: What are the main engine options for the CHENGLONG H5?

The truck is equipped with high-horsepower engines from preferred brands like Yuchai and Weichai, ensuring strong power and climbing capability.

Q2: How does the vehicle ensure driver safety?

It utilizes a keel frame cab for armored protection, a lowered center of gravity for stability, and active safety features like a 360° blind zone monitoring system.

Q3: What makes this truck fuel-efficient?

Fuel efficiency is achieved through an optimized power matching system, a drag-reducing body design that lowers wind resistance by 9%, and the use of lightweight modular materials.

Q4: How quiet is the interior of the cab?

Thanks to the new suspension cab, integral engine cushions, and advanced damping boards, the interior noise levels are kept as low as 70dB.

Q5: What are the cargo dimensions and tyre specifications?

The standard cargo dimension is 5600 × 2300 × 1500 mm, and it is equipped with 11.00R20 18PR tyres for heavy load endurance.

Q6: Are there any optional upgrades available?

Yes, options include various FAST transmission speed ratios, rear axle stabilizer bars, electro-hydraulic tipping systems, and automatic air conditioning.
